4kw Metal Cutting Steel Double Column Bandsaw Machine

Product Categories

Zhejiang Chenlong Sawing Machine Co., Ltd.

Contact Now

Name: 4kw Metal Cutting Steel Double Column Bandsaw Machine
Brand: CHENLONG
Price: 1 USD

Brand Name : CHENLONG

Certification : CE,ISO9001,ISO14001,OHSAS18000

Place of Origin : Zhejiang, China

MOQ : 1 Set/Sets

Price : Negotiable

Delivery Time : 40workdays

Packaging Details : plywood case + angle iron pallet.

Power (kW) : 4

Weight (KG) : 1200

POWER : UP TO CUSTOMER

Voltage : 380V/220V/415V/440V/3ph/50hz

Clamping : Hydraulic

Controlling Mode : Full automatic

Contact Now

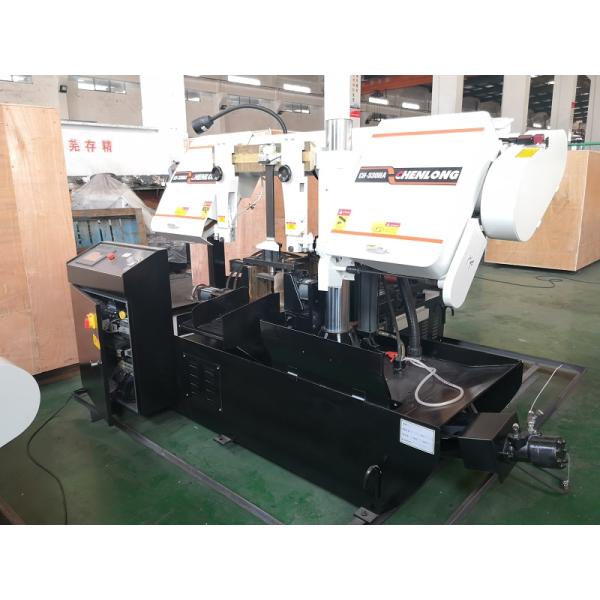

CHENLONG Double Column Band Saw Machine Metal Cutting CH-330HA

Features:

1. Roller table 1M long

2. NC control

3. Working light

4. Power blade cleaning brush

Product parameters
Model Name	CH-330HA
Max.cutting	Round	330mm
capacity	Quadrate	330×330mm
Saw blade	Speed	25/44/63/81m/min
	Size	34×1.1×4115mm
	Guides	Carbide and bearing blade guides
	Cleaning	Wire brush &flood coolant
	Tension	Manual
Motor output	Blade	4kw
	Hydraulic	0.75kw
	Coolant	0.06kw
Work feeding		Automatic
Work Vise		Hydraulic
Machine Weight		210KGS
Machine Size(L×W×H)		2500×2260×1620mm
Transmission		Gear reducer
Standard Equipments
1. Blade cleaning brush.
2. Working light
3. Saw frame height selector gauge
4. One piece of bi-metal saw blade.
5. One set of tools with tool box
6. Roller table 1M long
7. Out feed with auxiliary plate table.
Optional Equipment:
1. Variable vice pressure.
2. Power roller table 2M lone
3. Laser projector
4. Roller table 2M long
5. Inverter

4kw Metal Cutting Steel Double Column Bandsaw Machine
